Product Description
Mobile Security Barriers
One Set of Mobile Security Barrier Complete unit includes a towing vehicle and atrailer unit (Caravan) which contains 4 pieces of wire module with a length of 150meters barrier consists of 3 pieces of the module with a length of wire barrier @ 40meters and 1 module with a length of wire barrier 30 meters.
Common specification:
Dimension of vehicle:2190mm(W) X 4700mm(L) X 2220mm(H), one vehicle(with barbed wire) Vehicle net weight(without wire) : Around 2150kgs
Hot dipped galvanized steel for lower vehicle body, reinforce protection and anti-rust. Adjustable front supporting tire, adjustable pulling rod
specifications
Body size: length 5900mm±50mm, width 2250mm+50mm, height
2150mm士50mm
Axle: DZ40 seamless steel pipe, diameter 89mm+2mm, length
1850mm士50mm
Underframe: GB 120 channel steel, Q235 material
Main frame of car body: Q235 steel pipe, specifications:
40mm+0.5mm*60mm+0.6mm,50mm+0.5mm*50mm+0.5mm,40mm
士0.5mm *40mm+0.5mm, etc.
Razor Wire: stainless steel 304 material, the diameter of the
upper single row is 950mm+20mm, and the diameter of the
lower double row is 730mm+20mm
Body cover: Q235 material, 1.5mm+0.1mm cold-rolled carbon
steel plate
Paint: car-specific acrylic paint

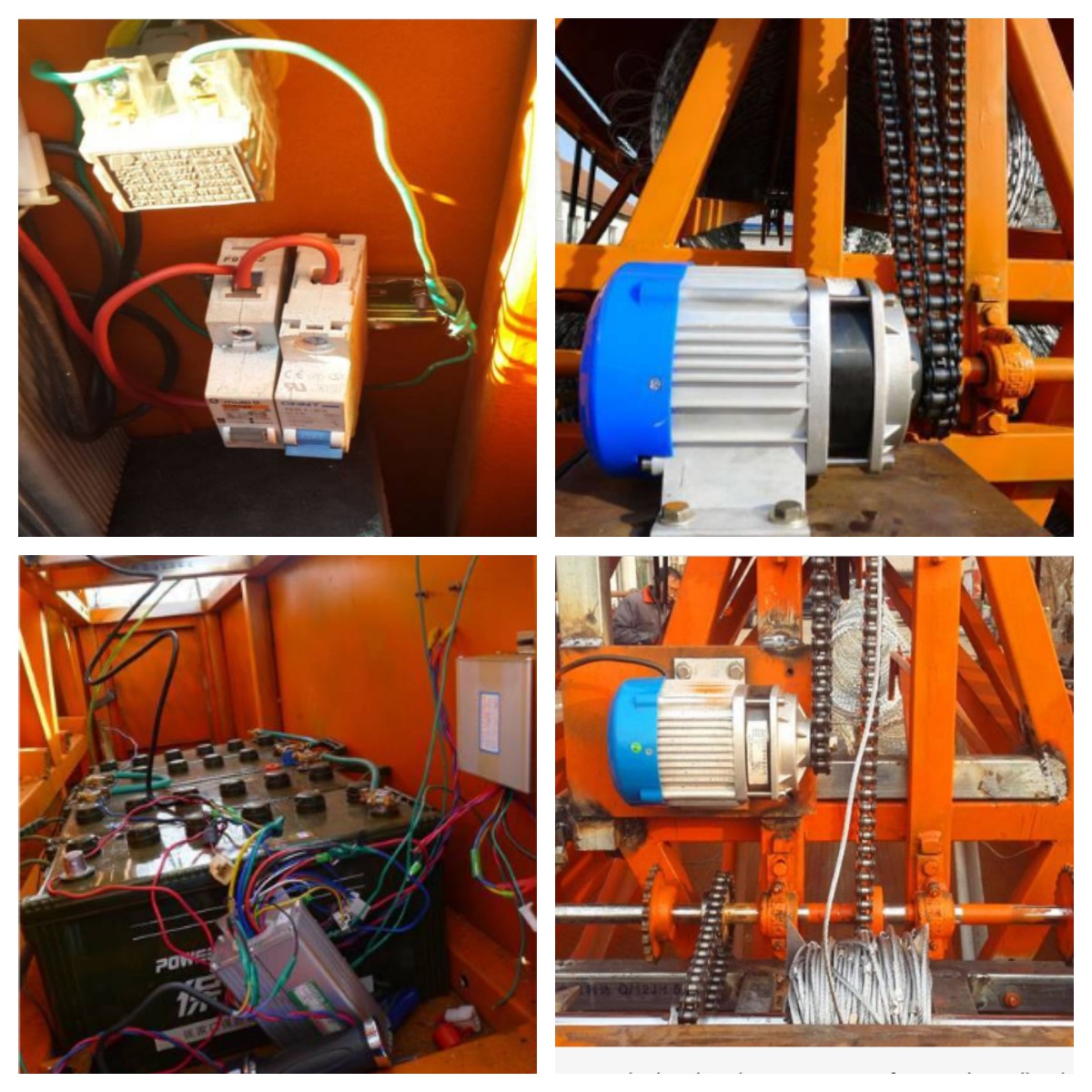

Motor: DC brushless 1000W motor, model BM1412ZXF, voltage
48V, speed 900 rpm, torque 2.89N m
Tires: 10-12.5 vacuum tires
Rim: Special for 10-12.5 vacuum tires, material 345 special
steel, sub-plate 235 carbon steel
Screw: National standard galvanized grade 4.8, material
| Body size | length 5900mm±50mm, width 2250mm+50mm, height2150mm士50mm |
| Axle | DZ40 seamless steel pipe, diameter 89mm+2mm, length1850mm士50mm |
| Body main frame | Q235 steel pipe |
| Razor wire | the diameter of the upper single row is 950mm+20mm, and the diameter of the lower double row is 730mm+20mm |
| Body sealing plate | Q235material1.5mm+0.1mm coldrolled carbon steel plate |
| Paint | Automotive acrylic baking paint |
| Motor | DC brushless 1000W motor model BM1412ZXFvoltage 48V speed900RPMtorque2.89N·m |
Application
Mobile Security Barriers is one of the specially designed equipment used by police to secure, protect a place or location of the demonstrators or rioters who try to enter /penetrate the defense in order to reduce physical contact between demonstrators andpolice officers.
