Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height

Anping Tailong Wire Mesh Products Co., Ltd.
Contact Now

Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height

Brand Name : TLSW

MOQ : 30sets

Price : CN¥23.82 - CN¥278.01

Payment Terms : L/C, T/T

Supply Ability : 1600 Set/Sets per Week

Delivery Time : <15 work days

Material : Low-Carbon Iron Wire, Galvanized Iron Wire

Type : Welded Mesh

Hole Shape : Square

Process : weaving,weldings

Usage : garden,highway

name : curved 3d wire mesh fence green pvc coated

Contact Now

decorative wrought iron fence 3d model fence panel

green coated welded wire mesh fencing

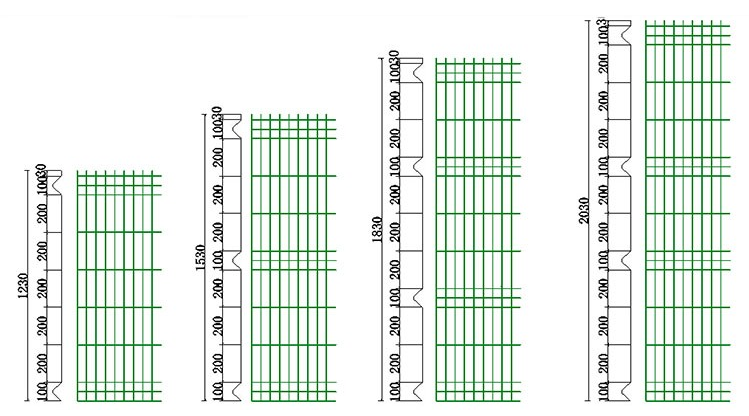

3D Fence Panel, Mesh Size 50x200mm
Height(mm)
Width(mm)
Wire Diameter(mm)
Folds No.
Post 60x40mm
Clamps
1030
2500
ø4.0/ø5.0
2V
H - 1.5m
2 sets
1230
2500
ø4.0/ø5.0
2V
H - 2.0m
2 sets
1530
2500
ø4.0/ø5.0
3V
H - 2.0m
3 sets
1830
2500
ø4.0/ø5.0
3V
H - 2.4m
3 sets
2030
2500
ø4.0/ø5.0
4V
H - 2.6m
4 sets
We can also manufacture fencing panels in other sizes on custom order.
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height

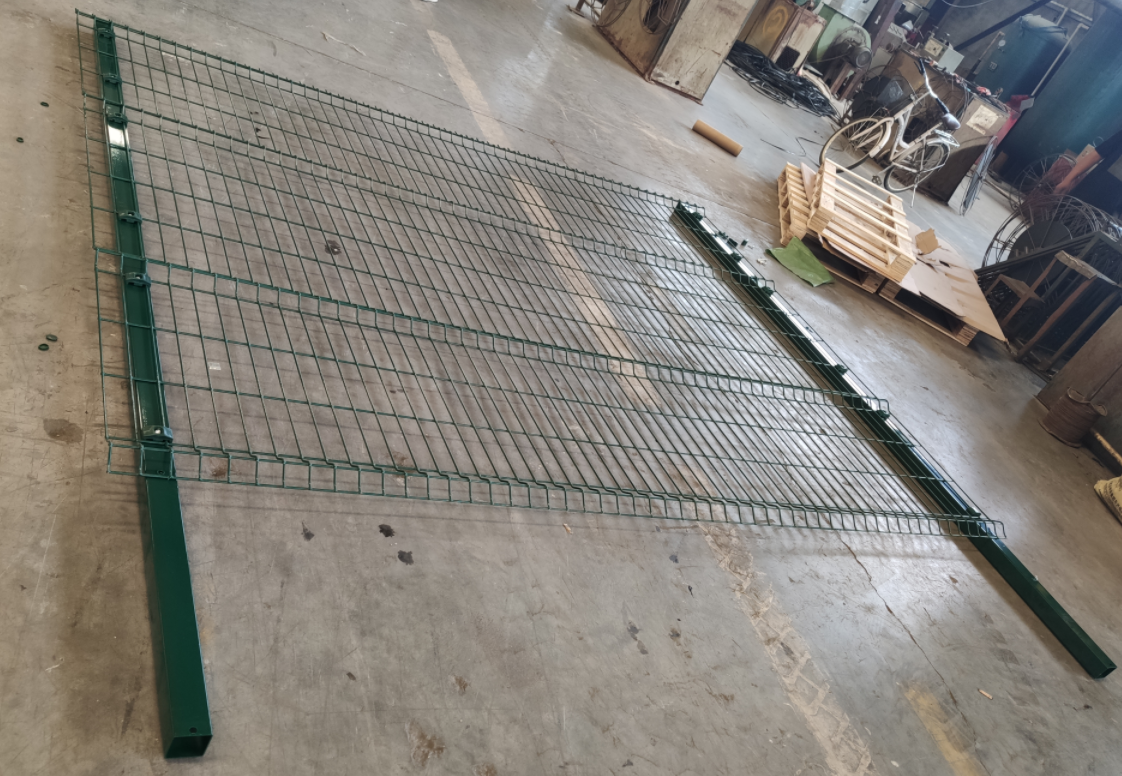

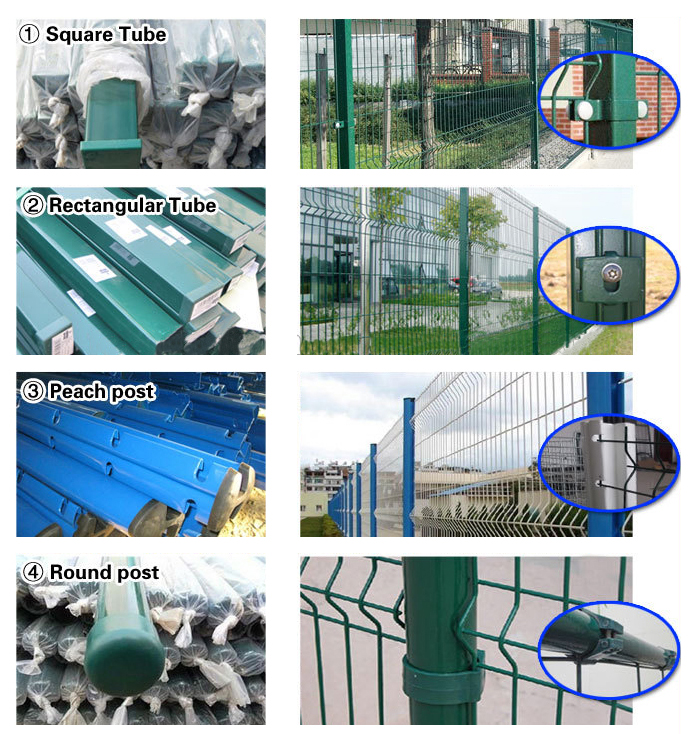

POST TYPE
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height
FINISH
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height
1. Hot dip galvanized
Use black steel wire welded to the panel, then do the hot dip galvanized, zinc coating at least 300g/m2, service life can be reach 30 years without rust.
2. Powder Painting
Our welded mesh panels are made of bare or colour powder-coated galvanised steel wire. Powder coating provides maximum protection against the weather and corrosion. The paint coating process is done by laying powder coats and curing them at high temperature. The process dissolves the pigment and results in a uniform colour coating of the mesh panel. The process is environmentally friendly.
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height
3. PVC Coated
Our welded mesh panels are made of bare or colour powder-coated galvanised steel wire. Powder coating provides maximum protection
against the weather and corrosion.
The standard powder coating or PVC coated colour is RAL 6005 Green. Other colours are available on request.
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height
PACKING
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height

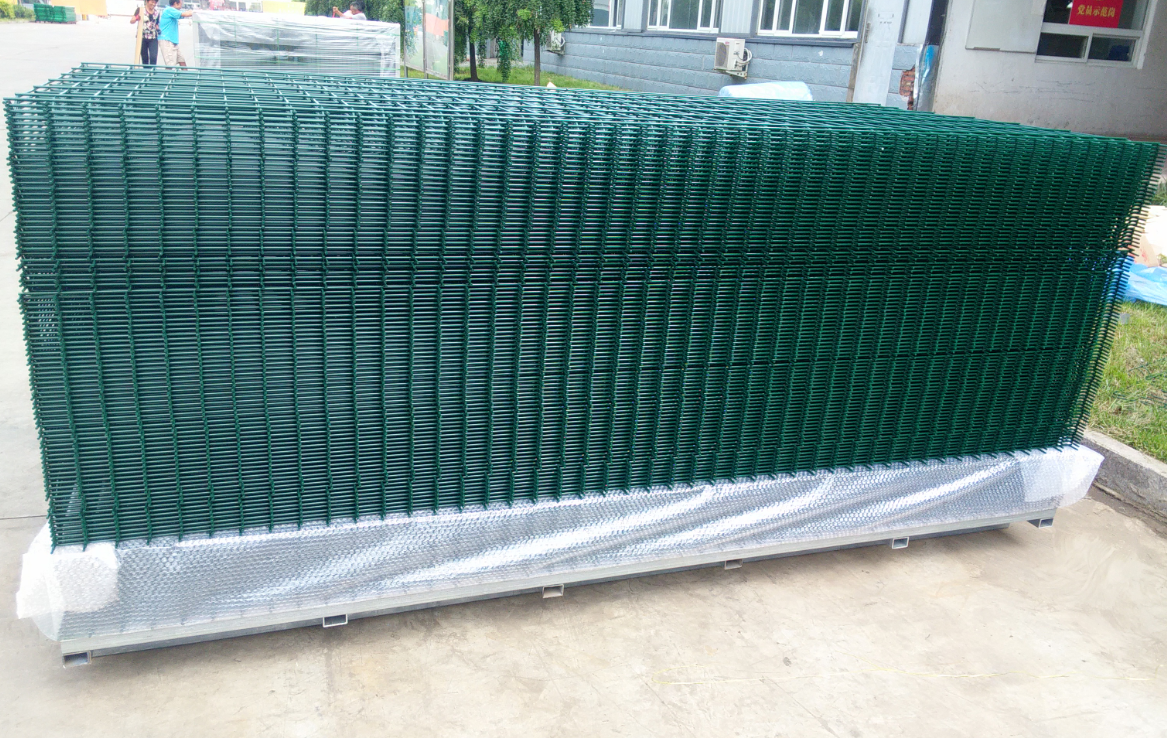

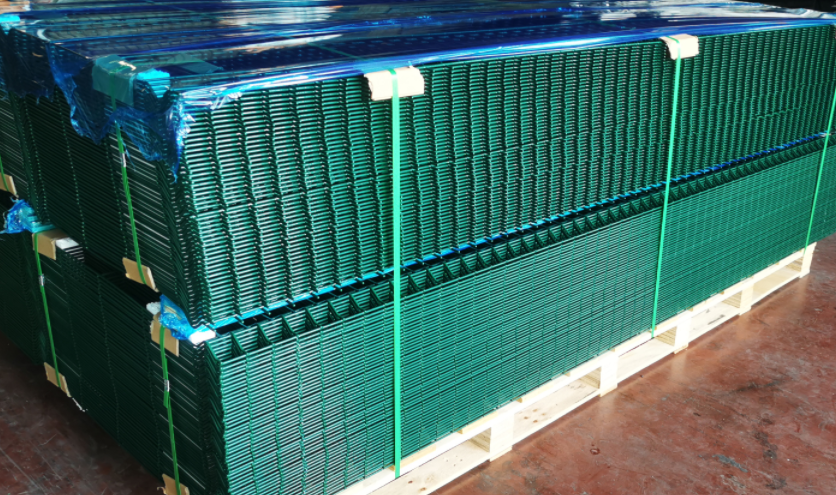

1. put the panel on the pallet one by one, keep it tidy
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height

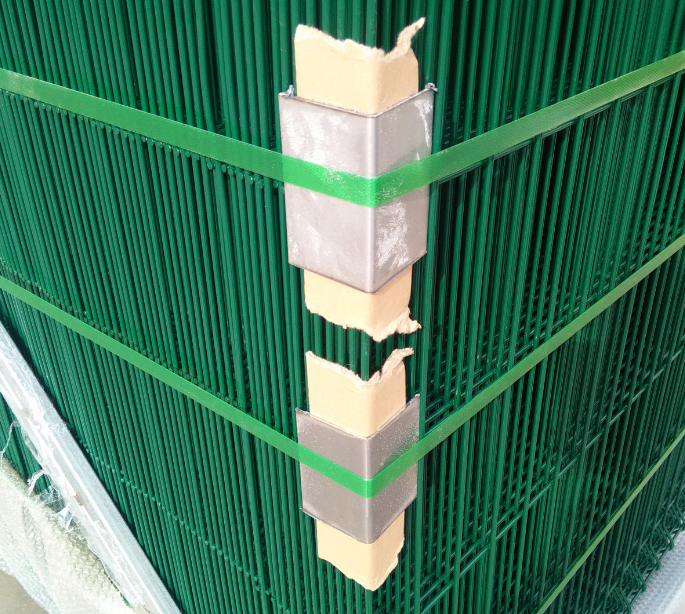

2. fix with paper and iron corners to ensure that the wires are not damaged
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height

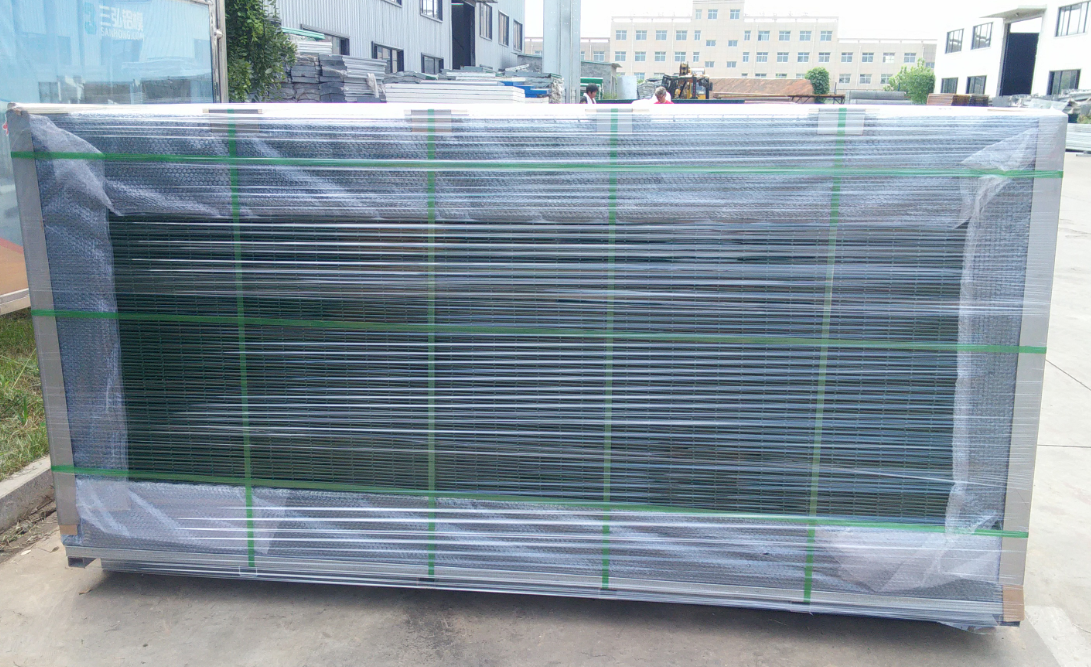

3. after packing done wrapped with film, effectively prevent dust
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height

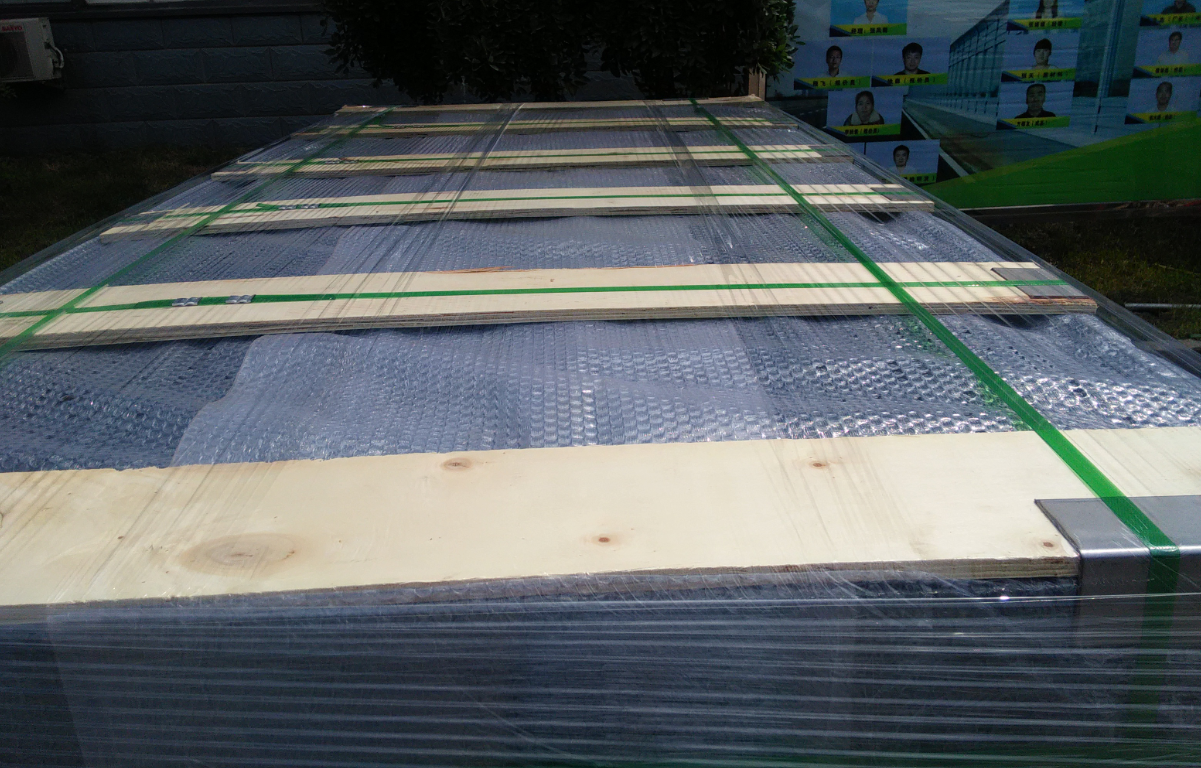

4.fixed wooden board on the top, and the pallets can be stacked
APPLICATION
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height

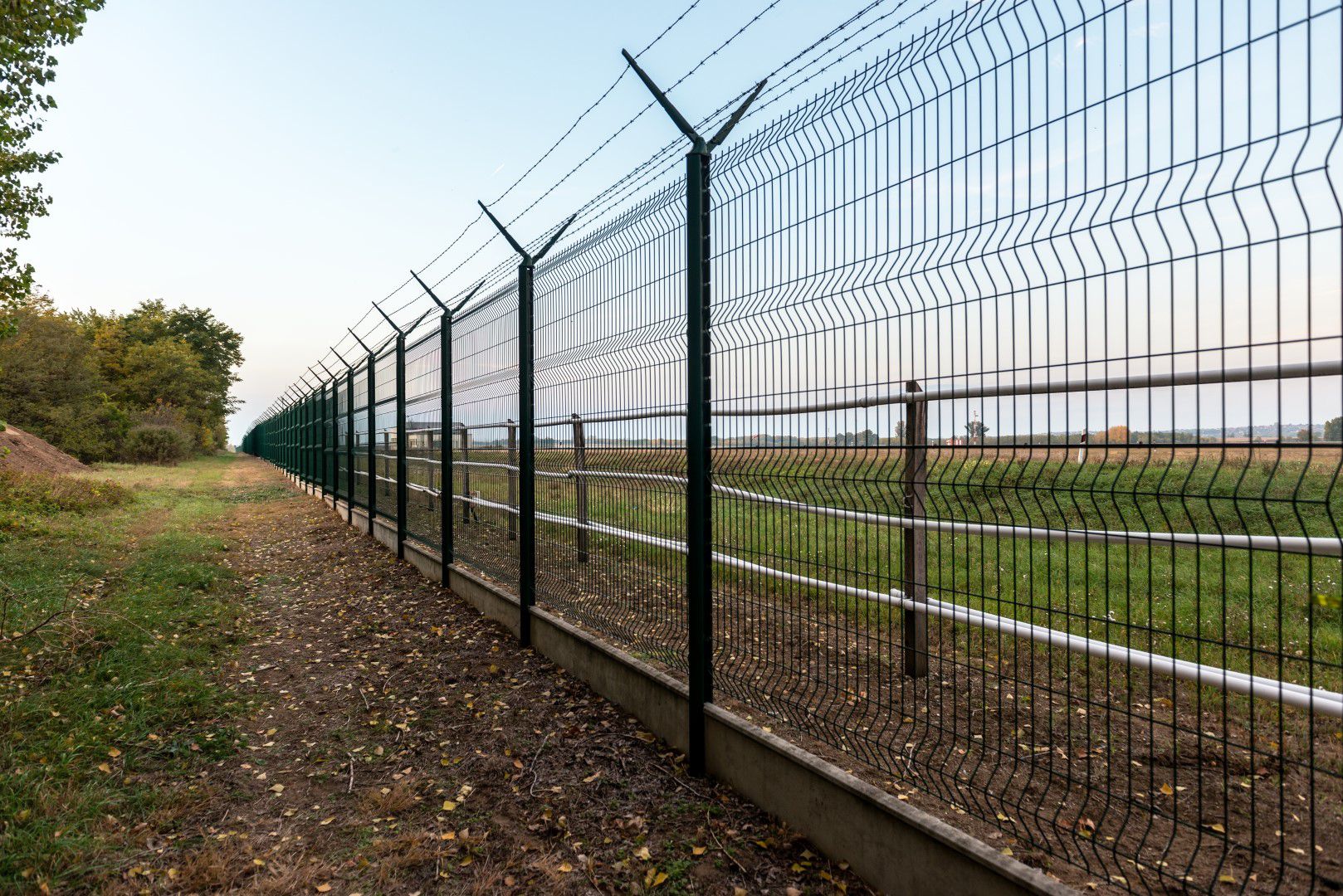

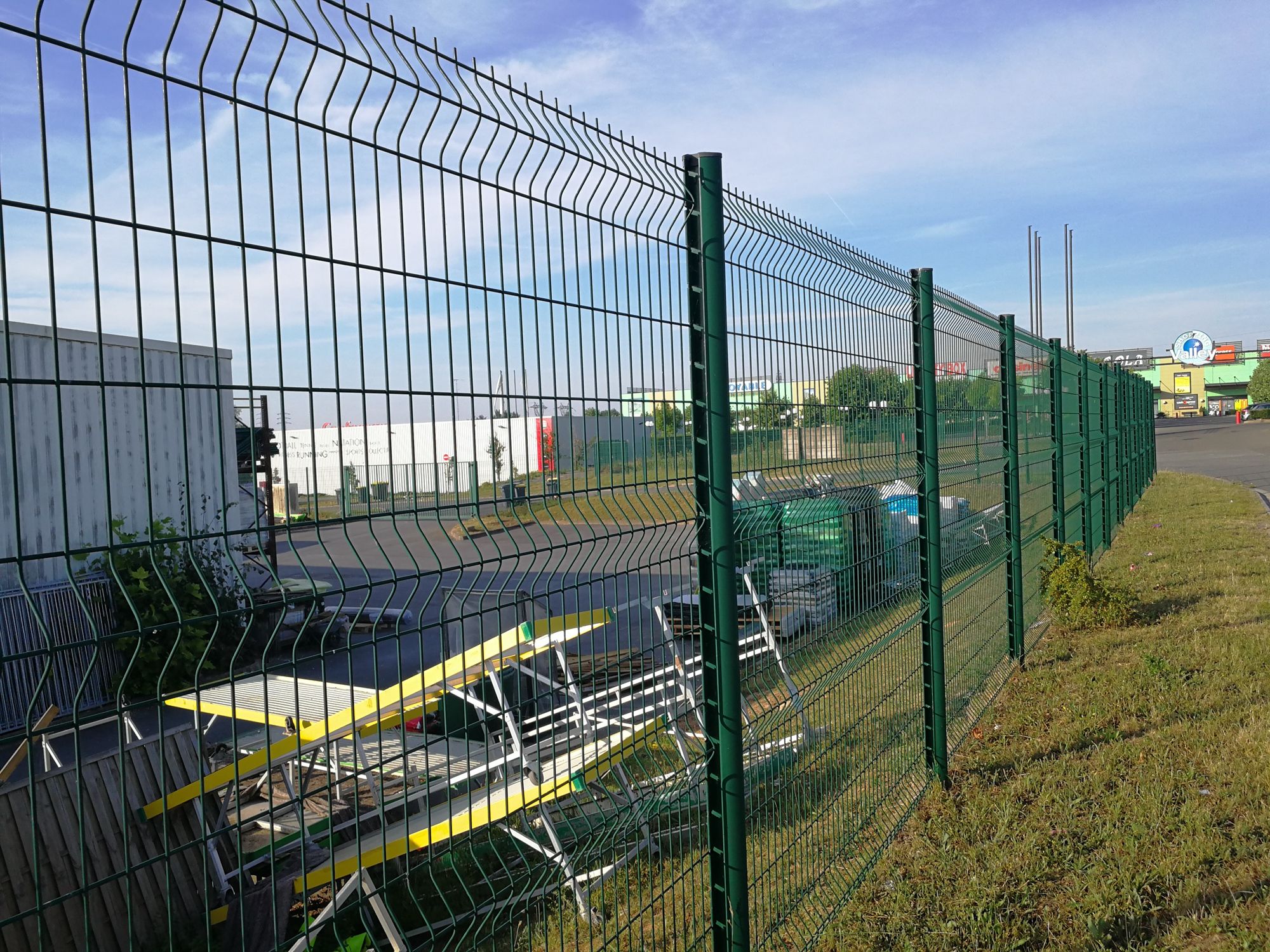

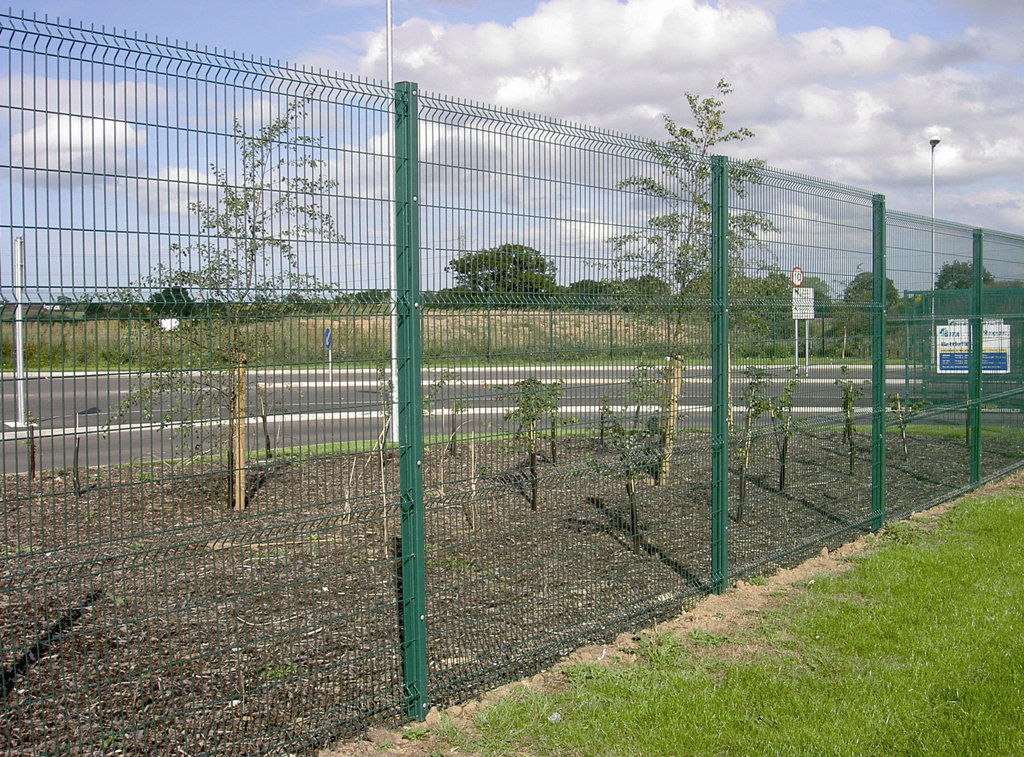

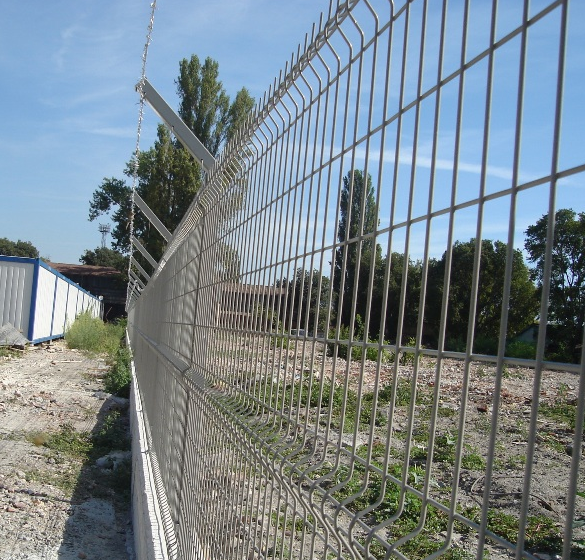

Mainly used for security protection in construction site, residential building, sports field, warehouse, highway or airport service area, railway station, etc.
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height
Discounted Item
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height
V Mesh Panel--30% Discount
inner wire: ø4.0mm
outter wire: ø5.0mm
mesh size: 50x200mm
panel height: 2.43m, 1.73m, 1.23m
panel length: 3.0m
finish: steel wire +PVC coated green color RAL6005
post: 60x60x1.5mm

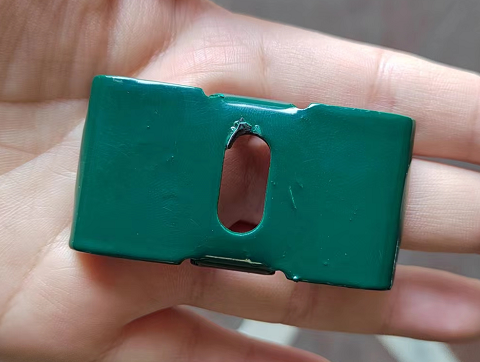

including metal clamps
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height
Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height


Company Profile

Decorative Wrought Iron 3D Wire Mesh Fence Green Vinyl Coated 1030mm height
Anping Tailong Hardware & Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fences, Our products include chain link fences, farm fences, SNS protective mesh fences, framework fences, temporary fences, 358 High Security Fences, curvy welded mesh fences, prison fences, airport fences, ornamental fences, iron fences, palisade fences, double loop fences and Euro fences. Tailong also supplies Hesco Bastions, reinforcing mesh, gabions, store cages and decorative wire mesh. Our factory located in Anping County, which is called "the Native land of Wire Mesh" in China. Tailong supplies high quality fences and related products for a variety of applications. We are committed to providing customers with good quality products, competitive prices and excellent services. Our products are widely used in road, railway, airport, residence district, seaport, garden and other fields. Selling well in all cities and provinces around China, our products are also exported to the USA, Australia, Germany, the UK, Japan, Singapore, Korea and so on. To learn more about what we can do for you, contact us at any time. We look forward to establishing a good and long-term business relationship with you.
FAQ
1. who are we?
We are based in Hebei, China, start from 2008,sell to Southern Europe(9.09%),Northern Europe(9.09%),Western Europe(9.09%),Eastern Asia(9.09%),Mid East(9.09%),Oceania(9.09%),Africa(9.09%),Southeast Asia(9.09%),Eastern Europe(9.09%),South America(9.09%),North America(9.09%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Wire Mesh Fence,Wire Mesh

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Russian
Welcome to contact us, thanks!
