Product Description

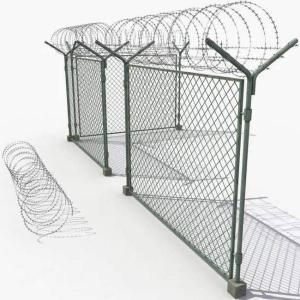

Airport fencing is made with low carbon steel wire welded panel post, barbed wire or razor wire and other accessories. It is a new fencing product specially designed for airports.
With high strength welded low carbon wire, rectangular steel or high strength pipe as pillars and welded V-shaped support at the top, the fence has strong impact resistance, with razor and barbed wire on the top, the fence has good protective function. Based on the "V" shape top with razor wire, this system offers econmically priced perimeter protection.
The general welded mesh fencings are of an extremely rigid construction: frame, welded mesh panels and posts.
Rapid Installation
The posts with expand screw guarantee a fast installation. Few accessories are required.
Fully Framed Fence Panel
Fully framed fence panels guarantee the fence rigidity and performance.
Welded mesh panels
Different welded mesh panels
The welded mesh panels are constructed out of frame, fixation of the posts by means of expand screw.
Coating Techniques:
Panels, posts are first galvanized then adhesion coating is applied for a perfect bond with the final polyester coating.
Applications:
Used for road, railway, civil building , urban fence, water conservancys construction; protecting of all kinds of machines, electrical equipment, seedbed.
Specifications of prison security fencing |
| Material | mild steel, stainless steel. |
| Surface treatment | galvanized and PVC coated. The colors of PVC coated roll top fence is green, white, grey, red, black, yellow, and blue. |
| Hole shape | rectangle. |
| Wire diameter | 0.165 in. (4 mm). |
| Horizontal wire spacing | 0.5 in. (12.7 mm). |
| Vertical wire spacing | 3 in. (76.2 mm). |
| Height | 1800 to 6000 mm. |
| Panel width | 2400 mm, 2515 mm |
| Tensile strength | 500–550 MPa. |
| Framework | * Post: RHS post or H post. * Rail: round rail or square rail. |
| Fittings | 40 × 6 mm flat bar clamp, galvanized M8 cup head bolts. |
| Matching security gates | * Single leaf gate: 1.2 m wide. * Double leaf gate: 3.8 m wide. |
| Fence topping | Barbed wire
Barbed wire arms for three to six strands of barbed wire to meet the security requirement. * design number * 12-4-3-14R having 4-point barbs spaced 3 in. on center.
* 12-4-5-14R having 4-point barbs spaced 5 in. on center. Razor wire (0.025 in. thickness) * 18/24 in. single-coil helical.
* 18/24/30/40/60 in. single coil concertina.
* 24/30 in. double coil concertina. |
| Warranty | 5 years. |
| Maintenance | * Periodic maintenance inspections.
* Regular cleaning program.
* PVC or zinc re-coat. |
| Features of prison security fencing | * High rigidity, high-level security welded wire mesh panels.
* Available with barb wire or razor wire topping.
* Finger-proof dense wire spacing, difficult to climb and cut.
* Corrosion-resistant
* Maintain a clear sight through the horizontal aperture.
* Beautiful in appearance, wide range of color.
* Easy to deliver and install.
* Long service life.
* Simple to maintain. |
| Applications | * Prison security fencing.
* Hospital security fencing.
* Military base fencing.
* Power station fencing.
* Electric substation fencing.
* Railway station fencing.
* Airport security fencing.
* Walkway security fencing.
* Animal enclosure fencing
* School fencing.
* Building fencing.
* Road fencing.
* Commercial location fencing.
* Gas line fencing.
* Industrial factory fencing. |
Product Details
Anping Tailong Hardware & Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fences, Our products include chain link fences, farm fences, SNS protective mesh fences, framework fences, temporary fences, 358 High Security Fences, curvy welded mesh fences, prison fences, airport fences, ornamental fences, iron fences, palisade fences, double loop fences and Euro fences. Tailong also supplies Hesco Bastions, reinforcing mesh, gabions, store cages and decorative wire mesh. Our factory located in Anping County, which is called "the Native land of Wire Mesh" in China. Tailong supplies high quality fences and related products for a variety of applications. We are committed to providing customers with good quality products, competitive prices and excellent services. Our products are widely used in road, railway, airport, residence district, seaport, garden and other fields. Selling well in all cities and provinces around China, our products are also exported to the USA, Australia, Germany, the UK, Japan, Singapore, Korea and so on. To learn more about what we can do for you, contact us at any time. We look forward to establishing a good and long-term business relationship with you.
